ECP40US24
24Vdc 1.67A, Open Frame Power Supply, Medical & ITE Certifications, 24 Volts 1.67 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.67 Amps
Output Peak Current:
2.17 Amps
Max Power:
40 Watts
Known Country of Origin:
Not specified
Features

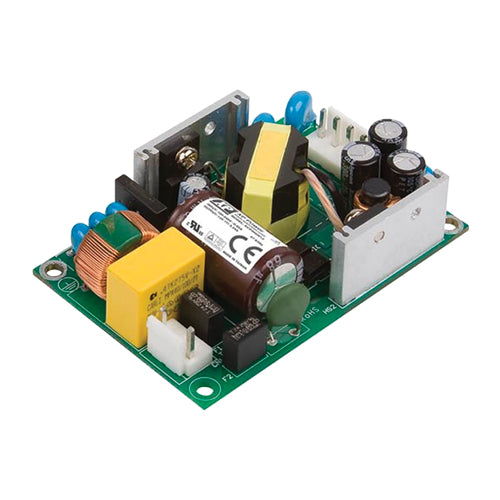

XP Power ECP40US24 2x3 open frame medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/EN 60601-1
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Single, dual and triple output models
Peak power
Reinforced I/O isolation 4000Vac
Low earth leakage current <250µA
No load power consumption <0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
ECP40US24
24Vdc 1.67A, Open Frame Power Supply, Medical & ITE Certifications, 24 Volts 1.67 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.67 Amps
Output Peak Current:
2.17 Amps
Max Power:
40 Watts
Known Country of Origin:
Not specified
Features
XP Power ECP40US24 2x3 open frame medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/EN 60601-1
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Single, dual and triple output models
Peak power
Reinforced I/O isolation 4000Vac
Low earth leakage current <250µA
No load power consumption <0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
