ECP40UT01
5V, 12V, -12V, Triple Output Power Supply, Medical & ITE CertificationsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
0.5 Amps
Max Power:
40 Watts
Known Country of Origin:
Taiwan
Features

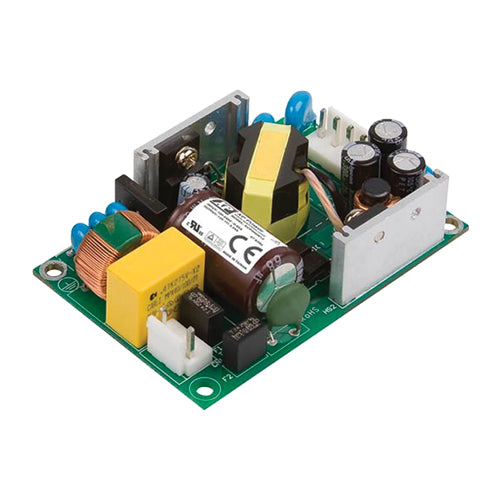

XP Power ECP40UT01 2x3 open frame medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/EN 60601-1
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Single, dual and triple output models
Peak power
Reinforced I/O isolation 4000Vac
Low earth leakage current <250µA
No load power consumption <0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
ECP40UT01
5V, 12V, -12V, Triple Output Power Supply, Medical & ITE CertificationsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
0.5 Amps
Max Power:
40 Watts
Known Country of Origin:
Taiwan
Features
XP Power ECP40UT01 2x3 open frame medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/EN 60601-1
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Single, dual and triple output models
Peak power
Reinforced I/O isolation 4000Vac
Low earth leakage current <250µA
No load power consumption <0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
