EML30US36-S
36Vdc 0.83A, 36 Volt DC Power Supply, Screw Terminal I/O, Class II, 36 Volts 0.83 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
36Vdc
Output Max Current:
0.83 Amps
Output Peak Current:
1.08 Amps
Max Power:
30 Watts
Known Country of Origin:
Not specified
Features

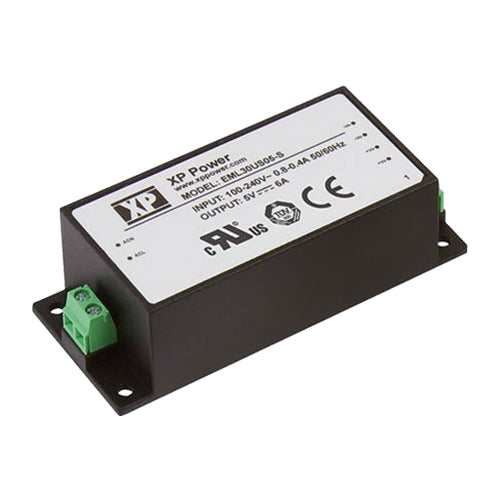

XP Power EML30US36-S chassis mount screw terminal medical power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Protection Class II
Peak power
Reinforced I/O isolation 4000Vac
No load power consumption ≤0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
EML30US36-S
36Vdc 0.83A, 36 Volt DC Power Supply, Screw Terminal I/O, Class II, 36 Volts 0.83 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
36Vdc
Output Max Current:
0.83 Amps
Output Peak Current:
1.08 Amps
Max Power:
30 Watts
Known Country of Origin:
Not specified
Features
XP Power EML30US36-S chassis mount screw terminal medical power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Protection Class II
Peak power
Reinforced I/O isolation 4000Vac
No load power consumption ≤0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
Get Pricing and Lead Time for EML30US36-S
Tell us the quantity you need and we will come back with minimum order quantity, factory lead time and pricing.
Your quote will include the minimum order quantity, the factory lead time, and pricing at the volumes you ask for.
Prefer to talk it through? Call 1-888-612-9514.
