Power Worth Searching For
EPL150PS36

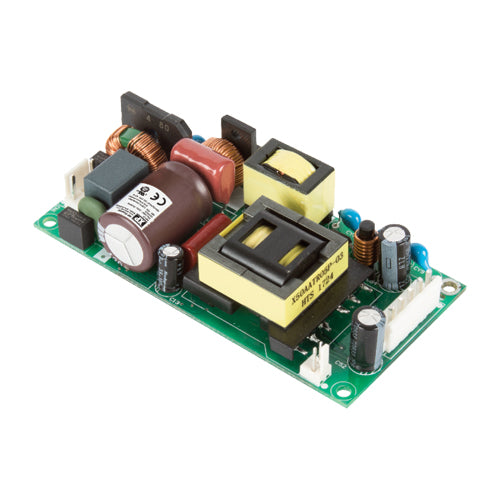

36Vdc 4.17A, Open Frame Power Supply, Medical & ITE Certifications, 36 Volts 4.17 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
4.17 Amps
Max Power:
150 Watts
Known Country of Origin:
Not specified
Features
XP Power EPL150PS36 2x4 inches open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ES 60601-1
Suitable for BF application
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
Class I and class II prepared
Low earth leakage current 230µA max
No load power consumption <0.5 Watts
High efficiency
Operation up to 5000m altitude
High power density: 18.9W/cubic inch
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
EPL150PS36
36Vdc 4.17A, Open Frame Power Supply, Medical & ITE Certifications, 36 Volts 4.17 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
4.17 Amps
Max Power:
150 Watts
Known Country of Origin:
Not specified
Features
XP Power EPL150PS36 2x4 inches open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ES 60601-1
Suitable for BF application
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
Class I and class II prepared
Low earth leakage current 230µA max
No load power consumption <0.5 Watts
High efficiency
Operation up to 5000m altitude
High power density: 18.9W/cubic inch
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
