EPL225PS28

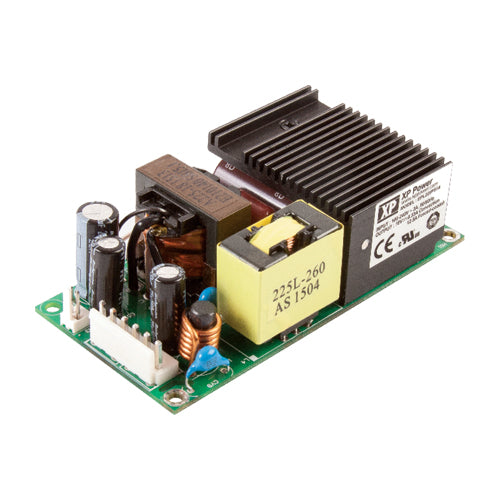

28Vdc 8.04A, Open Frame Power Supply, Medical & ITE Certifications, 28 Volts 8.04 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
28Vdc
Output Max Current:
8.04 Amps
Max Power:
225 Watts
Known Country of Origin:
Not specified
Features
XP Power EPL225PS28 chassis medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -40~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Low earth leakage current 230µA max
Built-in PFC
High efficiency
Built-in remote On/Off
No load power consumption <0.5 Watts
Operation up to 5000m altitude
High power density: 12.2W/cubic inch
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
