Power Worth Searching For
FS20-12
2000Vdc 0.005A, High Voltage DC/DC ConverterManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
7~12Vdc
Output Voltage:
2000Vdc
Output Max Current:
0.005 Amps
Max Power:
10 Watts
Known Country of Origin:
Vietnam
Features

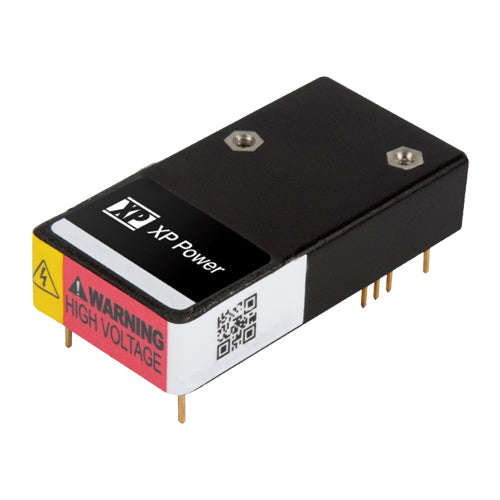

XP Power FS20-12 high voltage DC/DC converter
0.7~28Vdc input range
Operating temperature range: -25~+70°C
I/O isolation: 2500Vdc
No minimum load required
Low profile 0.5
Unregulated output
Protections: short circuit / over temperature / overvoltage
XP Power 3 year warranty
FS20-12
2000Vdc 0.005A, High Voltage DC/DC ConverterManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
7~12Vdc
Output Voltage:
2000Vdc
Output Max Current:
0.005 Amps
Max Power:
10 Watts
Known Country of Origin:
Vietnam
Features
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
