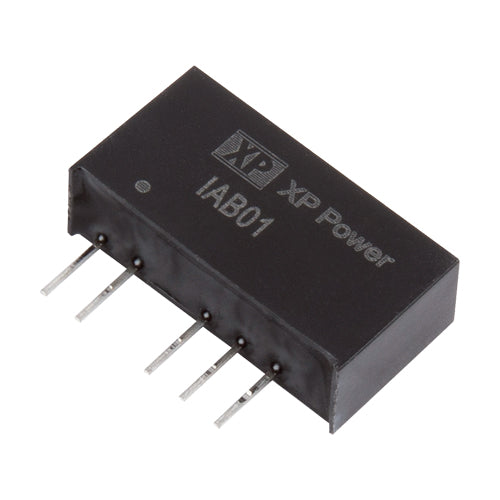

IAB0105D09
Dual O/P, Unregulated DC/DC Converter, SIP-7, Plastic PackageManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
4.5~5.5Vdc
Output Voltage #1:
9Vdc
Output #1 Max Current:
0.056 Amps
Output Voltage #2:
-9Vdc
Output #2 Max Current:
-0.056 Amps
Max Power:
1 Watts
Known Country of Origin:
Not specified
Features
XP Power IAB0105D09 SIP-7 package DC/DC converter
Input voltage range ±10%
Operating temperature range: -40~+105°C
Industrial safety certification: UL/cUL 62368-1
I/O isolation: 1500Vdc
Unregulated output
Protections: continuous short circuit
XP Power 3 year warranty
IAB0105D09
Dual O/P, Unregulated DC/DC Converter, SIP-7, Plastic PackageManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
4.5~5.5Vdc
Output Voltage #1:
9Vdc
Output #1 Max Current:
0.056 Amps
Output Voltage #2:
-9Vdc
Output #2 Max Current:
-0.056 Amps
Max Power:
1 Watts
Known Country of Origin:
Not specified
Features
XP Power IAB0105D09 SIP-7 package DC/DC converter
Input voltage range ±10%
Operating temperature range: -40~+105°C
Industrial safety certification: UL/cUL 62368-1
I/O isolation: 1500Vdc
Unregulated output
Protections: continuous short circuit
XP Power 3 year warranty
