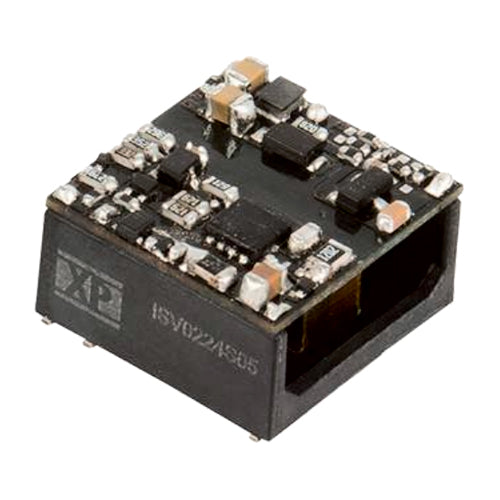

ISV0212D12 by XP Power

ISV0212D12

Dual O/P, DC/DC Converter, SMD Package, 4:1 Input

Manufacturer: XP Power

View Data Sheet
End of Life

This part has been discontinued by the manufacturer and is no longer available from TRC Electronics. Full specifications and documentation remain below for reference.

Find a Replacement

Specifications

Input Voltage:

4.5~18Vdc

Output Voltage #1:

12Vdc

Output #1 Max Current:

0.083 Amps

Output Voltage #2:

-12Vdc

Output #2 Max Current:

-0.083 Amps

Max Power:

2 Watts

Known Country of Origin:

Taiwan

Features

XP Power ISV0212D12 SMD DC/DC converter

Ultra-wide 4:1 input range

Operating temperature range: -40~+75°C

MIL-STD-810F

Input filter meets EN 55032 class A

I/O isolation: 3000Vdc

Remote On/Off

Fully regulated output

Protections: short circuit / undervoltage-lockout

XP Power 3 year warranty

ISV0212D12

ISV0212D12

Dual O/P, DC/DC Converter, SMD Package, 4:1 Input

Manufacturer: XP Power

View Data Sheet

Specifications

Input Voltage:

4.5~18Vdc

Output Voltage #1:

12Vdc

Output #1 Max Current:

0.083 Amps

Output Voltage #2:

-12Vdc

Output #2 Max Current:

-0.083 Amps

Max Power:

2 Watts

Known Country of Origin:

Taiwan

Features

XP Power ISV0212D12 SMD DC/DC converter

Ultra-wide 4:1 input range

Operating temperature range: -40~+75°C

MIL-STD-810F

Input filter meets EN 55032 class A

I/O isolation: 3000Vdc

Remote On/Off

Fully regulated output

Protections: short circuit / undervoltage-lockout

XP Power 3 year warranty

End of Life

This part has been discontinued by the manufacturer and is no longer available from TRC Electronics. Full specifications and documentation remain below for reference.

Find a Replacement

Find a Replacement for ISV0212D12

Tell us your requirements and our application engineers will identify a form, fit and function replacement.
