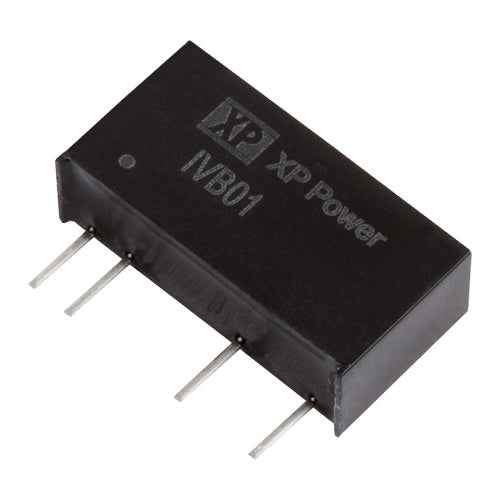

IVB0112S09
9Vdc 0.111A, Unregulated DC/DC Converter, SIP-7, Plastic PackageManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
10.8~13.2Vdc
Output Voltage:
9Vdc
Output Max Current:
0.111 Amps
Max Power:
1 Watts
Known Country of Origin:
Not specified
Features
XP Power IVB0112S09 SIP-7 package DC/DC converter
Input voltage range ±10%
Operating temperature range: -40~+105°C
Industrial safety certification: UL 62368-1
I/O isolation: 3000Vdc
Unregulated output
Protections: continuous short circuit
XP Power 3 year warranty
IVB0112S09
9Vdc 0.111A, Unregulated DC/DC Converter, SIP-7, Plastic PackageManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
10.8~13.2Vdc
Output Voltage:
9Vdc
Output Max Current:
0.111 Amps
Max Power:
1 Watts
Known Country of Origin:
Not specified
Features
XP Power IVB0112S09 SIP-7 package DC/DC converter
Input voltage range ±10%
Operating temperature range: -40~+105°C
Industrial safety certification: UL 62368-1
I/O isolation: 3000Vdc
Unregulated output
Protections: continuous short circuit
XP Power 3 year warranty
