Specifications
Input Voltage:
18~36Vdc
Output Voltage #1:
3.3Vdc
Output #1 Max Current:
1.5 Amps
Output Voltage #2:
-3.3Vdc
Output #2 Max Current:
-1.5 Amps
Max Power:
15 Watts
Known Country of Origin:
Taiwan
Features

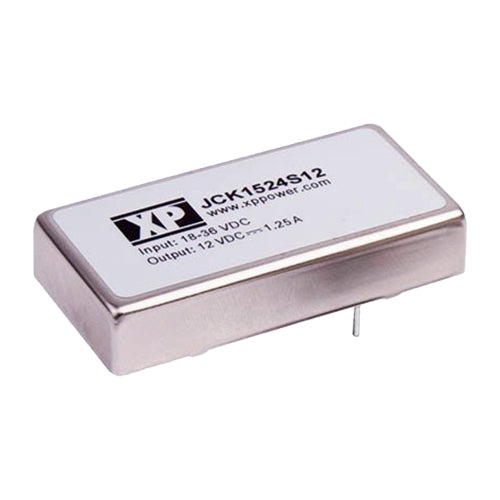

XP Power JCK1524D03 2x1 inches DC/DC converter
Wide 2:1 input range
Operating temperature range: -40~+100°C
I/O isolation: 1600Vac
No minimum load required
Fully regulated output
Protections: short circuit / overload / undervoltage lockout
XP Power 3 year warranty
JCK1524D03
Dual O/P, DC/DC ConverterManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
18~36Vdc
Output Voltage #1:
3.3Vdc
Output #1 Max Current:
1.5 Amps
Output Voltage #2:
-3.3Vdc
Output #2 Max Current:
-1.5 Amps
Max Power:
15 Watts
Known Country of Origin:
Taiwan
Features
XP Power JCK1524D03 2x1 inches DC/DC converter
Wide 2:1 input range
Operating temperature range: -40~+100°C
I/O isolation: 1600Vac
No minimum load required
Fully regulated output
Protections: short circuit / overload / undervoltage lockout
XP Power 3 year warranty
