Specifications
Input Voltage:
200~1500Vdc
Output Voltage:
24Vdc
Output Max Current:
1.67 Amps
Max Power:
40 Watts
Known Country of Origin:
Not specified
Features

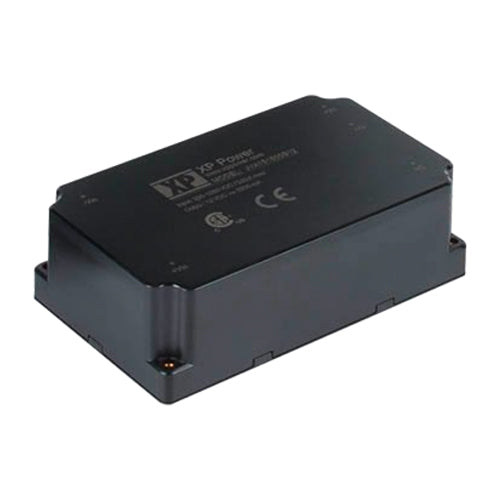

XP Power JVA401500S24 encapsulated DC/DC converter
Ultra-Wide 200~1500Vdc input range
Operating temperature range: -40~+70°C
I/O isolation: 4000Vac
No minimum load required
Fully regulated output
Protections: short circuit / overload / overvoltage / undervoltage-lockout
XP Power 3 year warranty
JVA401500S24
24Vdc 1.67A, DC/DC ConverterManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
200~1500Vdc
Output Voltage:
24Vdc
Output Max Current:
1.67 Amps
Max Power:
40 Watts
Known Country of Origin:
Not specified
Features
XP Power JVA401500S24 encapsulated DC/DC converter
Ultra-Wide 200~1500Vdc input range
Operating temperature range: -40~+70°C
I/O isolation: 4000Vac
No minimum load required
Fully regulated output
Protections: short circuit / overload / overvoltage / undervoltage-lockout
XP Power 3 year warranty
