Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
2.3 Amps
Max Power:
110 Watts
Known Country of Origin:
Not specified
Features

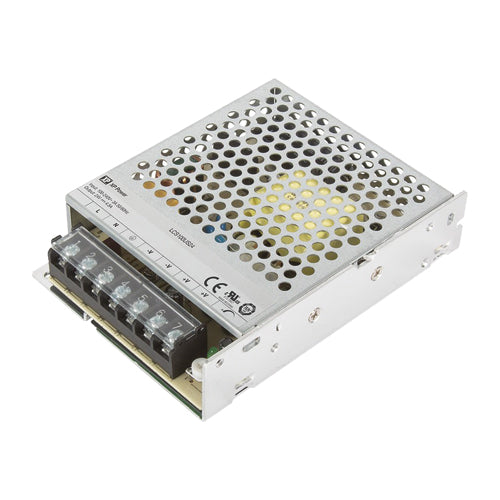

XP Power LCS100US48 enclosed type AC/DC power supply
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Class B conducted & radiated emissions
No load power consumption ≤0.3 watts
Adjustable output voltage
Low earth leakage current ≤0.75mA
Withstands 300Vac surge input for 5 seconds
Operating altitude up to 5000m
Withstands 5G vibration
Integrated connector cover
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
LCS100US48
48Vdc 2.3A, 48Vdc Power Supply, 48 Volts 2.3 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
2.3 Amps
Max Power:
110 Watts
Known Country of Origin:
Not specified
Features
XP Power LCS100US48 enclosed type AC/DC power supply
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Class B conducted & radiated emissions
No load power consumption ≤0.3 watts
Adjustable output voltage
Low earth leakage current ≤0.75mA
Withstands 300Vac surge input for 5 seconds
Operating altitude up to 5000m
Withstands 5G vibration
Integrated connector cover
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
