PBR500PS36B
36Vdc 13.89A, 36 Volt DC Power Supply, Medical & ITE Certifications, 36 Volts 13.89 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
13.89 Amps
Max Power:
500 Watts
Known Country of Origin:
Not specified
Features

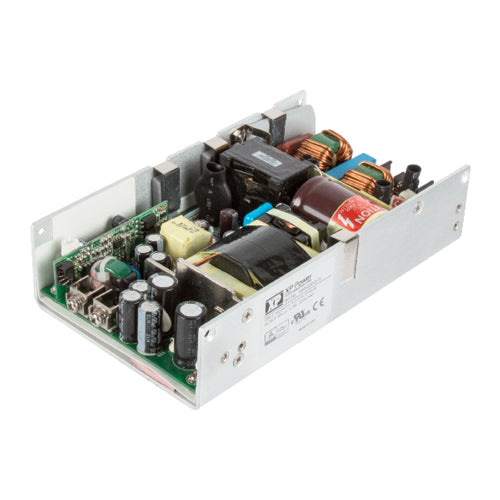

XP Power PBR500PS36B 4x7 u-chassis medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/ES 60601-1
2xMOPP
BF rated
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Low earth leakage current 250µA max
Built-in remote On/Off
Remote sense function
AC OK signal
Built-in 5V/0.5A standby output
Built-in PFC
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / over temperature
XP Power 3 year warranty
PBR500PS36B
36Vdc 13.89A, 36 Volt DC Power Supply, Medical & ITE Certifications, 36 Volts 13.89 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
13.89 Amps
Max Power:
500 Watts
Known Country of Origin:
Not specified
Features
XP Power PBR500PS36B 4x7 u-chassis medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/ES 60601-1
2xMOPP
BF rated
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Low earth leakage current 250µA max
Built-in remote On/Off
Remote sense function
AC OK signal
Built-in 5V/0.5A standby output
Built-in PFC
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / over temperature
XP Power 3 year warranty
