PDAM240-12C-H
12Vdc Medical Power Supply Enclosed VersionManufacturer: TT Electronics
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
12Vdc
Output Max Current:
20 Amps
Max Power:
240 Watts
Known Country of Origin:
Taiwan
Features

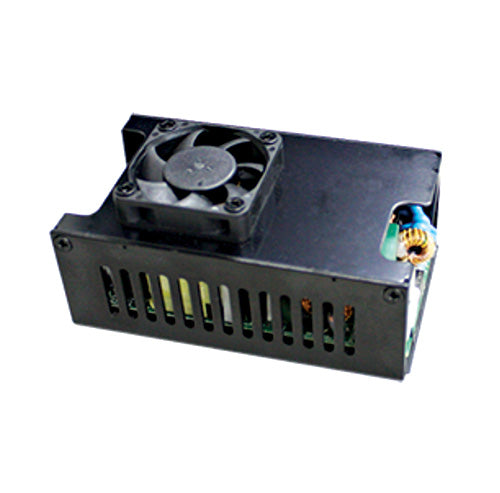

Power Partners PDAM240-12C-H compact enclosed AC/DC medical power supply
AC input range: 90~264Vac
Operating temperature range: -30~+70°C (with derating)
Safety approvals: UL/IEC/EN 60601-1 3rd Edition & UL/IEC/EN 60950-1 AM2
2xMOPP
Suitable for BF application
Class I and Class II input configurations
Built-in active PFC function
High efficiency
No load power consumption <0.5
Built-in DC fan
Built-in 12V/0.5A (Aux. output)
Protections: short circuit / over temperature / over power / over voltage
TT Electronics 1 year warranty
