PDAM500-12C
12Vdc Medical Power Supply Enclosed Version Medical & ITE ApprovalsManufacturer: TT Electronics
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
12Vdc
Output Max Current:
41.5 Amps
Max Power:
500 Watts
Known Country of Origin:
Taiwan
Features

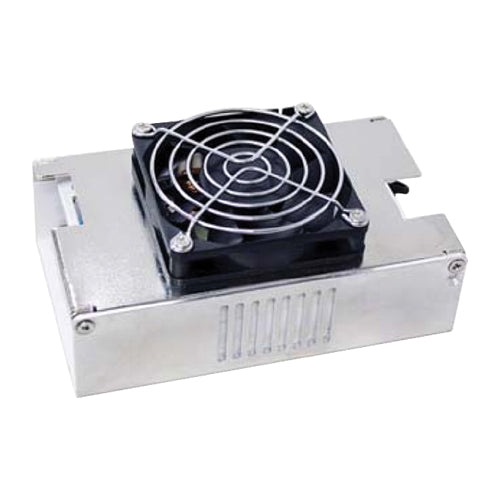

Power Partners PDAM500-12C compact enclosed AC/DC medical power supply
AC input range: 90~264Vac
Operating temperature range: -40~+70°C (with derating)
Safety approvals: CE c/UL ES60601-1 & EN60601-1 3rd Edition, UL60950-1
EN60601-1-2 4th Edition compliant
2xMOPP
Built-in active PFC function
High efficiency
Standby 5V@1A
Built-in 12V/0.3A (Aux. output)
Remote On/Off
Built-in DC fan
DC OK
Protections: short circuit / over temperature / over power / over voltage
TT Electronics 1 year warranty
