PJB-24V300WBNA

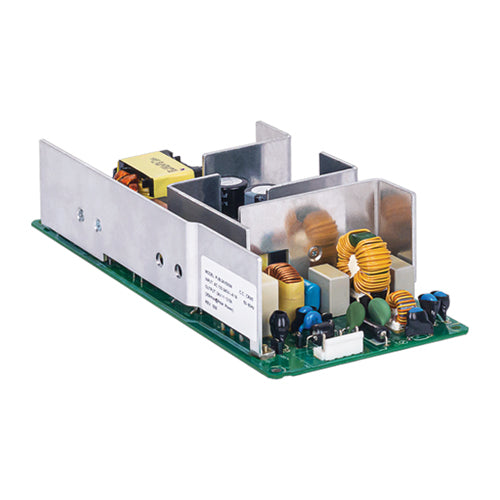

24Vdc 12.5A Power Supply Open Frame 24 Volts 12.5 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
12.5 Amps
Max Power:
300 Watts
Known Country of Origin:
China
Features
Open frame power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Peak power 200% for 10 seconds
SELV
Built-in PFC
Conformal coating on PCBA to protect against common dust and pollutants
Operation up to 5000m altitude
Leakage current <0.2mA
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 2 year warranty
