HPU1K5PS24-M

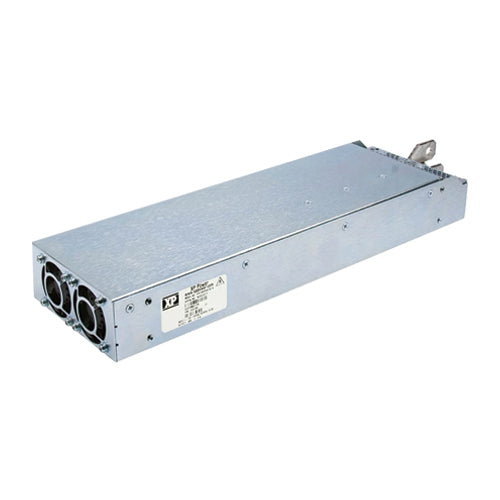

24Vdc 63A, High Power Medical AC/DC Power Supply, 24 Volts 63 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
63 Amps
Max Power:
1500 Watts
Known Country of Origin:
Vietnam
Features
Enclosed type medical power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: ANSI/AAMI ES 60601-1, EN 60601-1
Adjustable output voltage via potentiometer or external voltage
2xMOPP
SEMI F47
Parallel operation with current sharing
Built-in remote On/Off and remote sense
Built-in variable speed cooling fans
AC OK and DC OK signals
Built-in PFC
Standby output: 5V/1A
Protections: overvoltage / overcurrent / short circuit / over temperature
XP Power 3 year warranty
