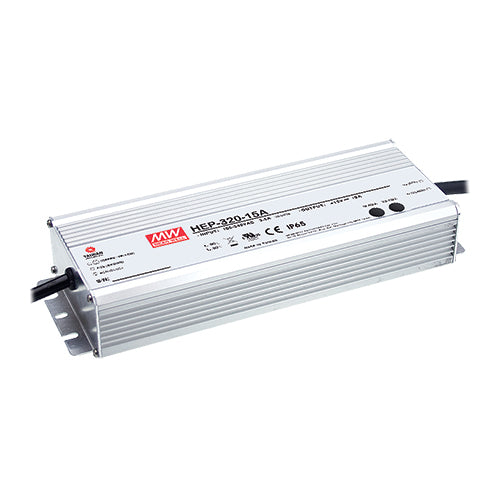

HEP-320-15A
15Vdc 19A 15V Power Supply Rugged Metal Case, IP65 15V 19AmpsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$180.43
5
$171.87
10
$164.25
20
$159.56
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~305Vac
Output Voltage:
15Vdc
Output Max Current:
19 Amps
Max Power:
285 Watts
Known Country of Origin:
China
Features
AC input range: 90~305Vac
Working temperature: -55~+70°C
Safety approval: UL 62368-1
Built-in active PFC function
High efficiency
Fan-less design, cooling by free air convection
Output voltage and output current adjustable via internal potentiometer
Withstand vibration test: 10G
IP65 aluminum enclosure
Over load protection: constant current limiting
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 6 year warranty
