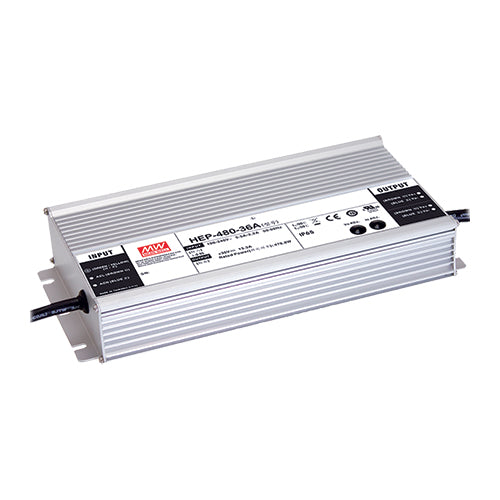

HEP-480-36A
36Vdc 13.3A 36Vdc Power Supply IP65, PFC, Metal Case 36V 13.3AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$259.21
5
$246.90
10
$236.07
20
$229.25
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~305Vac
Output Voltage:
36Vdc
Output Max Current:
13.3 Amps
Max Power:
478 Watts
Known Country of Origin:
China
Features
AC input range: 90~305Vac
Operating temperature: -55~+65°C
Safety approval: UL 62368-1
Output voltage and output current adjustable via internal potentiometer
Built-in active PFC function
High efficiency
Fan-less design, cooling by free air convection
Withstand vibration test: 10G
Meet 6KV surge immunity level
IP65
Over load protection: constant current limiting
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 6 year warranty
