DDP1200-US24-PCF

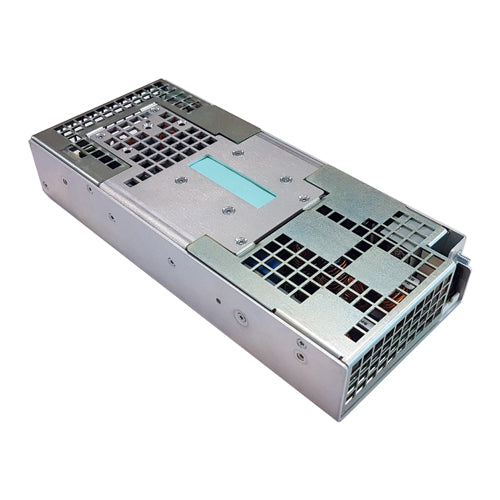

24Vdc ITE/LED Power Supply Low Profile, Perforated Cover External Air CooledManufacturer: Enedo
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$509.63
2
$502.93
10
$496.27
25
$482.48
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~305Vac
Output Voltage:
24Vdc
Output Max Current:
50 Amps
Max Power:
1200 Watts
Known Country of Origin:
Tunisia
Features
Efore DDP1200-US24-PCF highly efficient, external forced air cooled, perforated cover industrial and LED power supply
AC input range: 85~305Vac (low line de-rating)
Operating temperature: -20~+70°C
Industrial safety certification: IEC/EN 60950-1, UL 60950-1, IEC/EN 62368-1, UL 62368-1
UL 8750 lighting safety approval
Built-in PFC
1U low profile design
Low leakage current: <400µA
Remote On/Off, power good & remote sense
Built-in current sharing and OR-ing for parallel operation and N+1 redundancy
12V, 0.5A & +5V, 1A stand-by outputs (6 watts max combined power)
PMBus digital power management protocol
Operation up to 5,000 meters
Protections: over voltage / over current / short circuit / over temperature
Efore 5 year warranty
