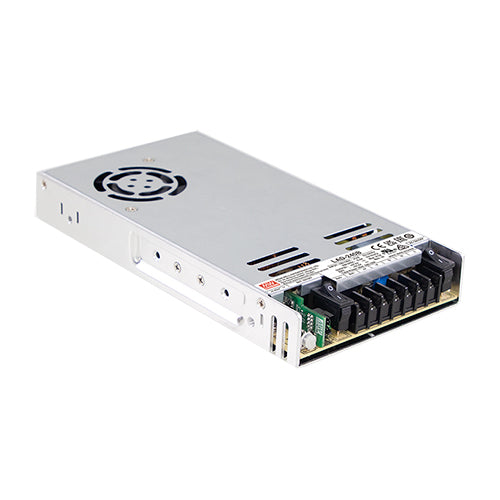

LAD-240A
13.8V 16.4A, +13.8V 1A Power Supply, Battery Charger Output, UPS FunctionManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
13.8Vdc
Output #1 Max Current:
17.4 Amps
Output Voltage #2:
13.8Vdc
Output #2 Max Current:
1 Amps
Max Power:
240 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac; 115/230Vac selectable by switch
Operating temperature range: -20~+60°C
Industrial safety certification: EN 62368-1, UL 62368-1
Adjustable output voltage
Low leakage current <0.5mA
Built-in fan
Low profile fits 1U applications
Built-in On/Off switch
AC OK signal
Withstands 5G vibration
Protections: short circuit / overload / overvoltage / over temperature / battery reverse polarity / battery cutoff / battery low voltage
MEAN WELL 3 year warranty
