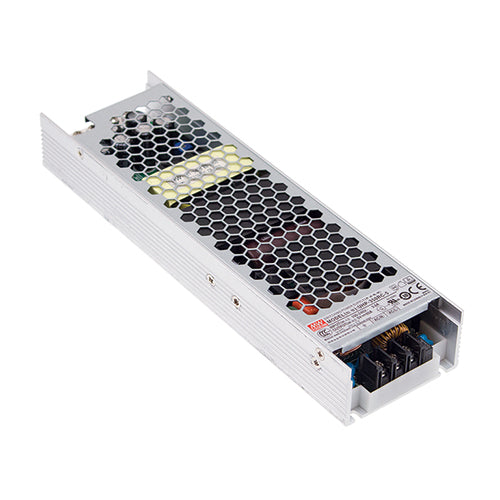

UHP-350-55
55Vdc Power Supply Low Profile 55 Volts 6.3 Amps, 350 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
55Vdc
Output Max Current:
6.3 Amps
Max Power:
350 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac
Operating temperature: -30~+70°C
Safety approvals: UL 62368-1, TUV EN 62368-1 & EN 60335-1
Withstand 300Vac surge input for 5 seconds
150% peak load capability (100ms)
Built-in active PFC function
Low profile/slim design: 31mm
LED indicator for power On
Withstand 5G anti-vibration
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
