UHP-500R-48

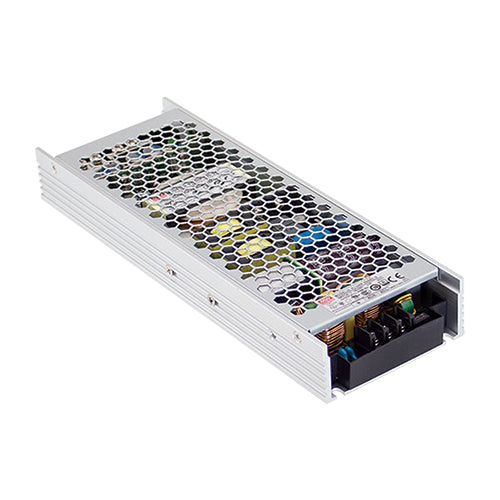

48Vdc 500 Watts Power Supply Redundant, DC OK Signal 31mm Low Profile Design, 500 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 10 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$138.43
5
$131.93
10
$126.14
20
$122.46
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
10.45 Amps
Max Power:
501 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac
Operating temperature range: -20~+70°C (with derating)
Safety approvals: UL 62368-1 & TUV EN 62368-1
Withstand 300Vac surge input for 5 seconds
150% peak load capability (100ms)
Built-in PFC
Low profile/slim design: 31mm
LED indicator for power On
Withstand 5G anti-vibration
Operating altitude up to 5000m
DC OK signal and redundant function
Protections: over load / over voltage / over temperature
MEAN WELL 3 year warranty
