Power Worth Searching For
NXT-175-1008

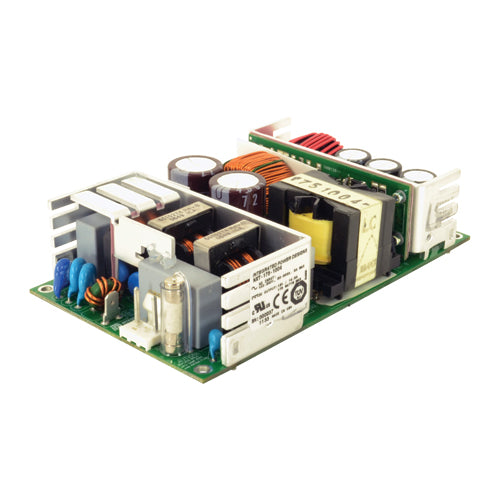

48Vdc Power Supply , Open Frame, 3" x 5" , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$182.89
3
$177.43
10
$174.82
25
$165.35
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
3.6 Amps
Max Power:
173 Watts
Known Country of Origin:
USA
Features
IPD NXT-175-1008 single output open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Power Factor Correction
Small compact size, high power density
Available with optional chassis and cover
Protections: over voltage / over power
Integrated Power Designs 3 year warranty
