MDS-300APB18 AB

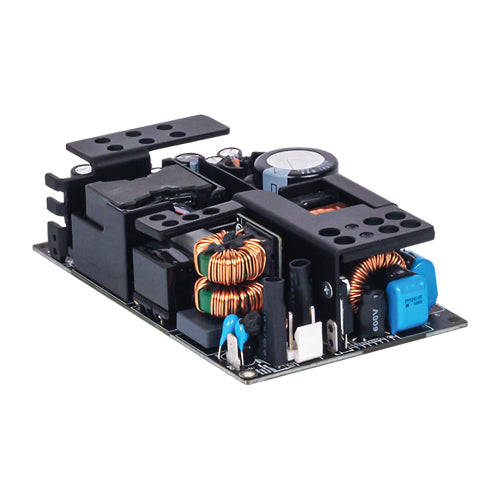

18Vdc 16.66A Medical Power Supply 3x5 Open Frame 18 Volts 16.66 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
18Vdc
Output Max Current:
16.66 Amps
Max Power:
300 Watts
Known Country of Origin:
China
Features
3x5 inches open frame medical power supply
AC input range: 90~264Vac
Operating temperature range: -10~+70°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, IEC 60950-1
Built-in PFC
Built-in 5V/0.5A standby output
Built-in remote sense
Power good signal
Operation up to 5000m altitude
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
