MEP-200A12J BNA

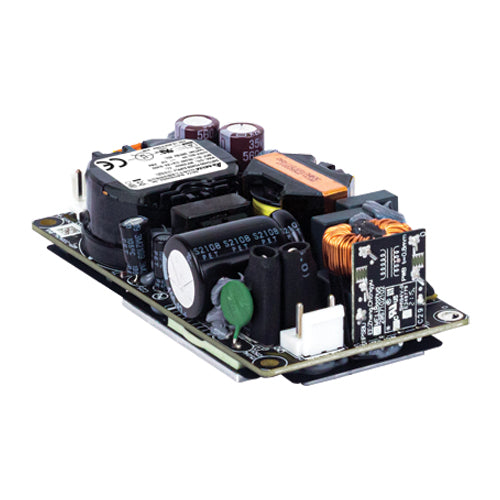

12Vdc 6.67A Medical Power Supply 2x4 Open Frame 12 Volts 16.67 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
12Vdc
Output Max Current:
16.67 Amps
Max Power:
200 Watts
Known Country of Origin:
China
Features
2x4 inches open frame medical power supply
AC input range: 90~264Vac
Operating temperature range: -30~+70°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, IEC 60950-1
Class II
Built-in PFC
Operation up to 5000m altitude
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
