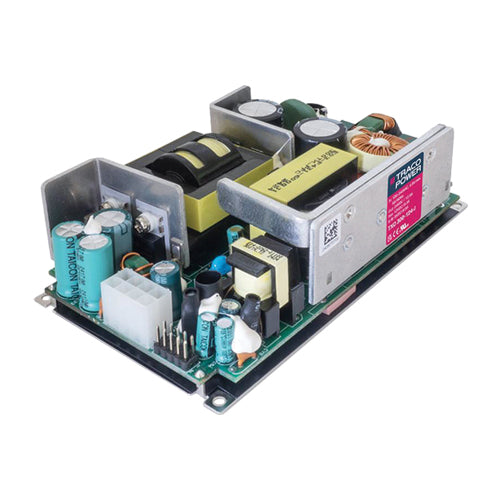

TXO 300-115-J
15Vdc 20A, 300 Watt, 3x5 Open Frame Power Supply, 15 Volts, 20 Amps, UL 62368-1, Remote ControlManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
20 Amps
Max Power:
300 Watts
Known Country of Origin:
Taiwan
Features
3x5 open frame AC/DC industrial power supply
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Internal EN55032 class B filter
Over voltage category II
DC OK signal
Built-in PFC
Built-in fan output
Built-in remote On/Off
Built-in remote sense
Class I and Class II
Protections: short circuit / overvoltage / overload
TRACO Power 3 year warranty
